DIECI AB L 3500T

Description

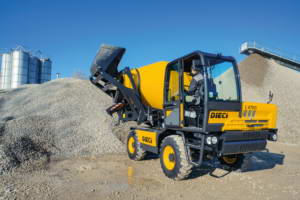

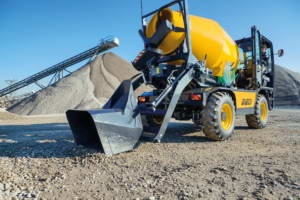

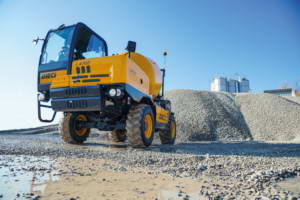

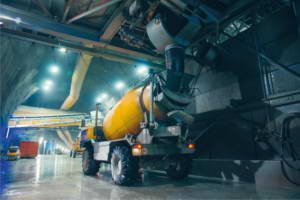

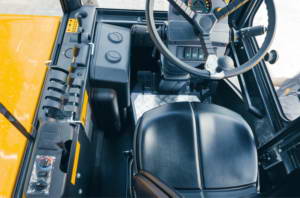

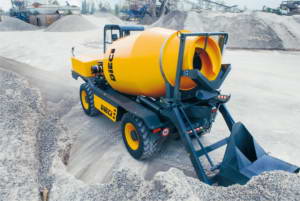

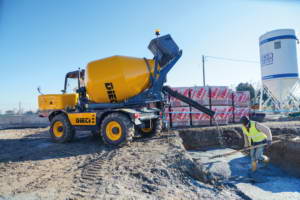

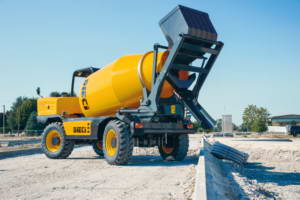

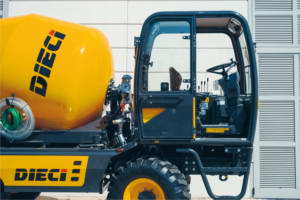

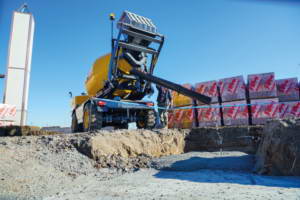

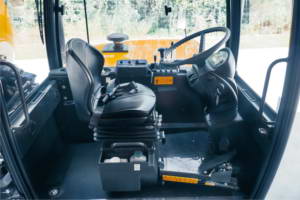

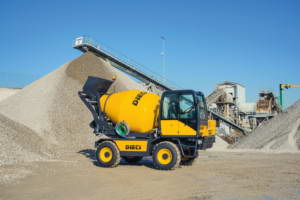

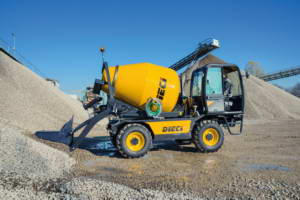

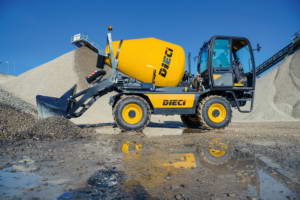

The Dieci Truck Mixer specifically designed for heavy and intensive use. The models in the range feature a self-locking axle, 2-speed gearbox, hydrostatic transmission, oil-bath disc brakes, and height-adjustable, rotating 180° unloading chute. The proven design of the spiral blades allows for homogeneous mixing in all sections while the high thickness of steel used for the mixing drum ensures its dimensional stability and long life. Maneuverability, compact dimensions and agility, combined with the 4-wheel drive, provides better grip, for improved stability and safety. The cab at the top for ergonomics, comfort and safety devices, is ROPS-FOPS approved and equipped with soundproofing, heating, tilt steering wheel and ergonomic seat with suspension.

Specifications

Height from ground
320mm
Maximum length
4955mm
Cab height
2900mm
Tire width
2370mm
Wheels curve radius
5330mm
Maximum speed
21 km/h
Concrete yield (SLUMP 5÷9 cm - UNI EN 206-1)
2,5 m3
Water tank capacity
630 L
Unladen weight
5900kg
Engine Brand
Perkins
Fuelling
Diesel
Displacement
3621 cm3
Maximum power
85,9 kW (115HP)
Emission standard
Stage V/Tier 4f
Transmission type
Hydrostatic with variable displacement pump
Standard tires
12.5x18''''
